High Pressure Steel Wire Braided Rubber Hose SAE100 R1A ,SAE100 R1AT EN853 1SN

Categories :
Contact Now
  • Description

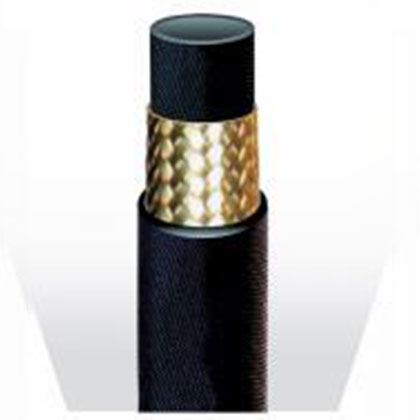

CONSTRUCTION :This hose is composed of an inner tube of oil synthetic rubber,a single wire braided reinforcement, and an oil and weather resistant synthetic rubber cover.

APPLICATIONS : lt is suitable to carry hydraulic fluids, such as hydraulic oil, fuel oil lubricants, emulsion, glycol and water, etc.

WORKING TEMPERATURE :from-40℃ up to+100℃

SAE100 R1A

size size LD WD OD WP PP BP Min BR WT
最小 最大 最小 最大 最小 最大
Min Max Min Max Min Max Mpa Psi Bar Mpa Psi Bar Mpa Psi Bar Inch mm kg/m
5 3/16 4.6 5.4 8.9 10.1 11.9 13.5 20.7 3001 207 41.4 6003 41.4 82.8 12006 828 3.5 89 0.22
6.3 1/4 6.2 7 10.6 11.7 15.1 16.7 18.9 2740 189 37.87 5481 37.8 75.6 10962 756 4.02 102 0.31
8 5/16 7.7 8.5 12.1 13.3 16.7 18.3 17.2 2494 172 34.4 4988 344 68.8 9976 688 4.49 114 0.38
10 3/8 9.3 10.1 14.5 15.7 19 20.6 15.5 2247 155 31 4495 310 62 8990 620 5 127 0.45
12.5 1/2 12.3 13.5 17.5 19.0 22.2 23.8 13.8 2001 138 27.6 4002 276 55.2 8004 552 7.01 178 0.55
16 5/8 15.5 16.7 20.6 22.2 25.4 27 10.3 1493 103 20.6 2987 206 41.2 5974 412 7.99 203 0.63
19 3/4 18.6 19.8 24.6 26.2 29.4 31 8.6 1247 86 17.2 2494 172 34.4 4988 344 9.49 241 0.77
25 1 25.0 26.4 34.1 34.1 36.9 39.3 6.9 1000 69 13.8 2000 138 27.6 4002 276 12.01 305 1.06
31.5 1-1/4 31.4 33 41.7 41.7 44.4 47.6 4.3 623 43 8.6 1247 86 17.2 2494 172 16.5 419 1.45
38 1-1/2 37.7 39.3 48 48 50.8 54 3.4 493 34 6.8 986 68 13.6 1972 136 20 508 1.8
51 2 50.4 52 61.9 61.9 65.1 68.3 2.6 377 26 5.2 754 52 10.4 1508 104 25 635 2.3

SAE100 R1AT EN853 1SN

size size LD WD OD WP PP BP Min BR WT
最小 最大 最小 最大 最小 最大
Min Max Min Max Min Max Mpa Psi Bar Mpa Psi Bar Mpa Psi Bar Inch mm kg/m
5 3/16 4.6 5.4 8.9 10.1 11.1 13 25 3625 250 50 7250 500 100 14500 1000 3.35 85 0.2
6.3 1/4 6.2 7 10.6 11.7 12.7 14 22.5 3262 225 45 6524 450 90 13050 900 3.94 100 0.25
8 5/16 7.7 8.5 12.1 13.3 14.3 16 21.5 3117 215 43 6234 430 86 12470 860 4.53 115 0.31
10 3/8 9.3 10.1 14.5 15.7 16.7 18 18 2610 180 36 5220 360 72 10440 720 5.12 130 0.36
12.5 1/2 12.3 13.5 17.5 19.0 19.8 21 16 2320 160 32 4640 320 64 9280 640 7.09 180 0.45
16 5/8 15.5 16.7 20.6 22.2 22.9 25 13 1885 130 26 3770 260 52 7540 520 8.87 200 0.52
19 3/4 18.6 19.8 24.6 26.2 26.9 29 10.5 1552 105 21 3044 210 42 6.9 420 9.45 240 0.65
25 1 25.0 26.4 34.1 34.1 34.6 37 8.8 1276 88 17.6 2552 176 35.2 5140 352 11.81 300 0.91
31.5 1-1/4 31.4 33 41.7 41.7 42.2 45 6.3 913 63 12.6 1826 126 25.2 3654 252 16.54 420 1.30
38 1-1/2 37.7 39.3 48 48 49.1 52 5 725 50 10 1450 100 20 2900 200 19.69 500 1.7
51 2 50.4 52 61.9 61.9 62.5 66 4 580 40 8 1160 80 16 2320 1600 24.80 630 2
