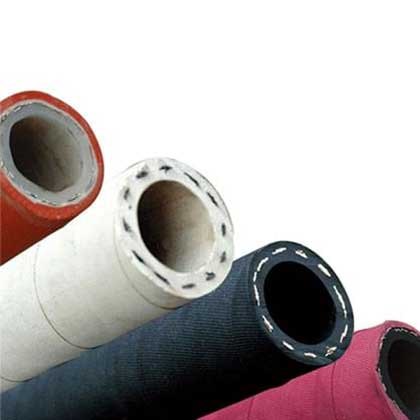

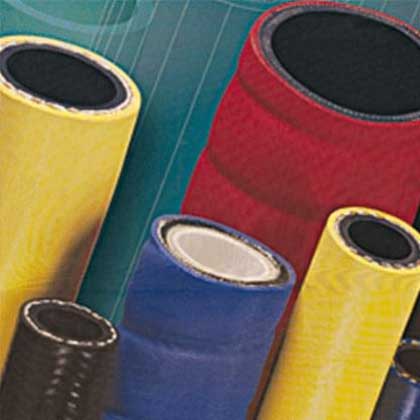

CONSTRUCTION : This hose is composed of an inner tube of oil resistant synthetic rubber, one braid of suitable fiber, and an oil and weather resistant synthetie rubber cover.
APPLICATONS :This hose is suitable for petroleum based hydraulie fluids within a temperature range of -40℃~+100℃
SAE100 R6
| size | size | LD | OD | WP | PP | BP | Min BR | WT | |||||||||
| 最小 | 最大 | 最小 | 最大 | ||||||||||||||
| Min | Max | Min | Max | Mpa | Psi | Bar | Mpa | Psi | Bar | Mpa | Psi | Bar | Inch | mm | kg/m | ||
| 5 | 3/16 | 4.5 | 5.4 | 10.3 | 11.9 | 3.5 | 510 | 35 | 7 | 1015 | 70 | 14 | 2030 | 140 | 1.97 | 75 | 0.1 |
| 6.3 | 1/4 | 6.1 | 7 | 11.9 | 13.5 | 2.8 | 410 | 28 | 5.6 | 810 | 56 | 11.2 | 1620 | 112 | 2.59 | 2.59 | 0.13 |
| 8 | 5/16 | 7.6 | 8.5 | 13.5 | 15.1 | 2.8 | 410 | 28 | 5.6 | 810 | 56 | 11.2 | 1620 | 112 | 3.94 | 2.59 | 0.15 |
| 10 | 3/8 | 9.2 | 10.1 | 15.1 | 16.7 | 2.8 | 410 | 28 | 5.6 | 810 | 56 | 11.2 | 1620 | 112 | 3.94 | 2.59 | 0.18 |
| 12.5 | 1/2 | 12.4 | 13.5 | 19.0 | 20.6 | 2.8 | 410 | 28 | 5.6 | 810 | 56 | 11.2 | 1620 | 112 | 4.92 | 2.59 | 1.26 |
| 16 | 5/8 | 15.6 | 16.7 | 22.2 | 23.8 | 2.4 | 350 | 24 | 4.9 | 710 | 49 | 9.8 | 1420 | 98 | 5.51 | 4.92 | 1.31 |
| 19 | 3/4 | 18.7 | 19.8 | 25.4 | 27.8 | 2.1 | 2.1 | 21 | 4.2 | 610 | 42 | 8.4 | 1220 | 84 | 5.91 | 5.91 | 0.41 |
