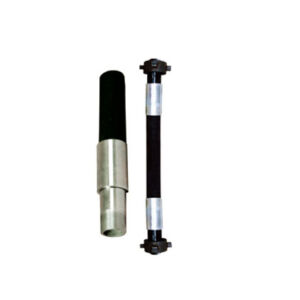

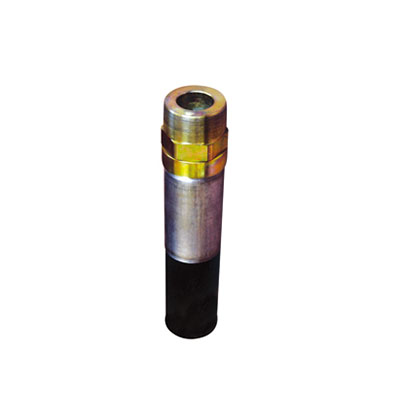

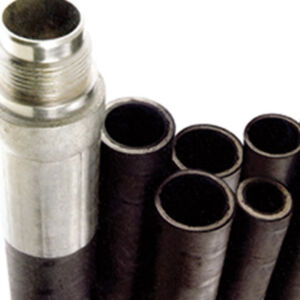

CONSTRUCTION : lt is composed of an inner rubber protection lay er , middle rubber layer, steel wire spiraled layer and external rubbercovcr.

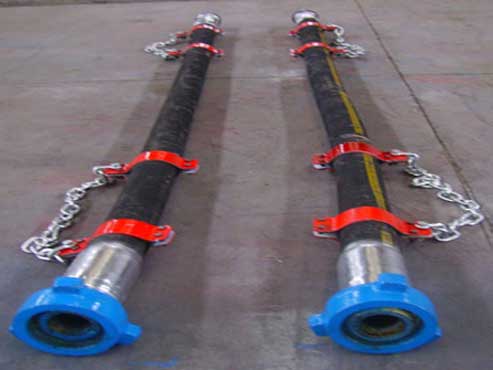

APPLICATONS : Steel wire spiraled drill ing rubber hoses arc used in oil fields, well cementing,well repairing, geol ogicalexplorations,small drilling machine,and watcrconveyance at coal excavations, used to carry slurry,water at env ironmental temperature, and other fluids.
| Size Id×Layer NO. | Inside Diameter mm | Tolerance mm | Reinforcement Diameter mm | Outside Diameter mm | Tolerance mm | Working Pressure MPa | Proof Pressure MPa | Burst Pressure MPa | Min Bend Radius mm | Weignht kg/m | |
| Size | Tolerance | ||||||||||
| 51*4SP | 51 | 1.0 | 63 | 1.0 | 69 | 1.5 | 35 | 70 | 140 | 660 | 5.70 |
| 64*4SP | 64 | 1.2 | 77 | 1.0 | 84 | 1.5 | 35 | 70 | 140 | 990 | 5.78 |
| 76*4SP | 76 | 1.4 | 101 | 1.5 | 107 | 2 | 35 | 70 | 140 | 1200 | 16.50 |
| 89*4SP | 89 | 1.4 | 114 | 1.5 | 120 | 2 | 35 | 70 | 140 | 1300 | 19.65 |
| 102*4SP | 102 | 1.5 | 132 | 1.5 | 135 | 2 | 35 | 70 | 140 | 1400 | 20.35 |
| 51*6SP | 51 | 1.0 | 66 | 1.0 | 71.9 | 1.5 | 70 | 140 | 210 | 560 | 6.73 |
| 64*6SP | 64 | 1.2 | 81 | 1.0 | 85 | 1.5 | 70 | 140 | 210 | 1200 | 8.02 |
| 76*6SP | 76 | 1.4 | 109 | 1.5 | 115.5 | 2 | 70 | 140 | 210 | 1300 | 23.0 |
| 89*6SP | 89 | 1.4 | 122 | 1.5 | 128.6 | 2 | 70 | 140 | 210 | 1400 | 28.0 |
| 102*6SP | 102 | 1.5 | 135 | 1.5 | 142.3 | 2 | 70 | 140 | 210 | 1600 | 30.0 |
