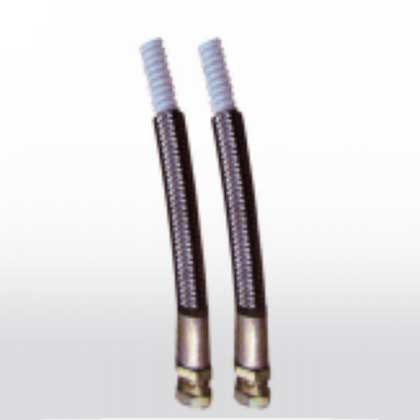

Features: This product is made of polytetrafluoroethylene corrugated hose reinforced by steel wire braiding, and the two ends are equipped with metal joints to form a hose assembly. It has folding resistance, small bending radius, high, low temperature, pressure, corrosion resistance, non-stick and long service life
Features: Inner layer: Corrugated hose made of PTFE, which is characterized by high temperature resistance, corrosion resistance, non-stick, folding resistance, and small bending radius. Outer layer: Made of stainless steel SUS304 braided mesh, which strengthens the hardness of the hose tube, brightens and withstands pressure, and is externally connected with various quick connectors. Operating temperature characteristics: continuous temperature resistance -50C~+210℃, temporary temperature resistance -70C~+260C.
Application: It is suitable for software connection of hydraulic pressure, air pressure and steam transportation in rubber, plastic, clothing, automobile, machine tool, shipbuilding, electrical machinery, diesel engine, papermaking and other industries. It has better service performance and service life than other conveying hoses for conveying alternating cold and hot liquids, gases and strong corrosive media.
| 9Item | Inch | ID(mm) | OD(mm) | Thickness(mm) | Working Pressure (kg/em²) | Min Burst Pressure (kg/em²) | Min bending diameter(mm/±3mm) |
| FW-B20 | 1/4 | 5.75-6.55 | 9.85-10.55 | 1 | 151 | 450 | 32 |
| FW-B25 | 5/16 | 7.75-8.55 | 12.25-13.15 | 1 | 126 | 370 | 36 |
| FW-B30 | 3/8 | 9.14-10.25 | 15.85-16.55 | 1 | 105 | 324 | 59 |
| FW-B40 | 1/2 | 12.45-13.25 | 18.45-19.35 | 1 | 90 | 270 | 82 |
| FW-B50 | 5/8 | 15.35-16.25 | 24.85-25.55 | 1.5 | 72 | 255 | 95 |
| FW-B60 | 3/4 | 18.6-19.85 | 28.25-29.55 | 1.5 | 60 | 231 | 113 |
| FW-B70 | 7/8 | 21.84-22.86 | 32.25-33.55 | 2 | 52 | 189 | 145 |
| FW-B100 | 1 | 24.89-26.16 | 35.55-36.85 | 2 | 47 | 144 | 186 |
备注: 单根长度在10米到20米 1psi(1磅/英寸?) =00703kg/cm31bar (巴) =1.0197kg/em3
